Ace Utility Series
Ace Utility Series Lugger Hoists
Our Ace Utility Series units are diehard, tried and true systems. Ace has been producing our version of the Original Heil-style unit for over 60 years. With modern engineering and years of experience, Ace has transformed these units to be relevant in the 21st Century.
REQUEST A QUOTE
Product information
| SPECIFICATIONS | ACE | BENEFITS |
| Gross Lifting Capacity | 30,000 lbs. | |
| Container Capacity | 6-20 Cubic Yards | |
| Dump Degree | 120° | Controlled Dump and Less "Stringing" of Material |

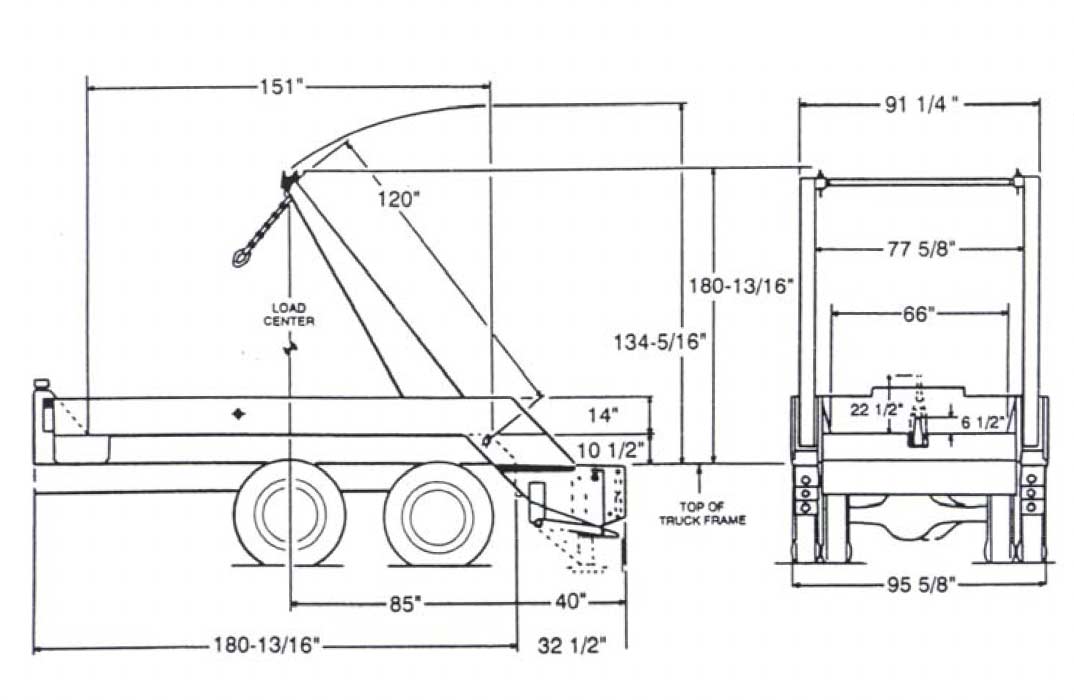

| Arm Length | 120" | Versatility of Container Sizes |
| Operating Pressure | 2500 PSI | |
| Weight Distribution | Best in class | Arm Hinge is above bed. This allows the container to be brought 16" farther forward towards the cab. |
| Cycle Time | Lowered Position Raised Position |
56 Seconds 46 Seconds |
| BODY CONSTRUCTION | ||
| Subframe | 10" Structural Channel | Industry Standard |
| Side Boxes | 1/4" Plate | Thicker and Higher Yield Steel. Longest Life |
| Body Floor | 1/4" Formed | |
| Hinge Pins | 3" with Grease Zerks | Higher Yield & Heavier Duty |
| Walking Steps | Both Driver and Passenger Side | Easy Access From Any Direction |
| Cab Protector | 1/4" Angle Iron Welded to Body Frame | More protection, Prevents Container from Shifting |
| Wear Strips | 3/8" x4" Wear Strips | Prevents Damage to Body's Deck |
| Access Panels | Front & Rear of Body | Easy Access to All Components |
| Body Frame Mounts | (4)1/2" Tie Down Rod with 1/2" Plate (8) 5/8"x 2 1/2" Plate with Grade 8 Nuts |
Longer Life than Bolt Clamps Welded to Body, Bolted to Truck Frame |
| ARM CONSTRUCTION | ||
| Arm Construction | 3/8" Steel, One Solid Plate, Square Construction | Square Design is Stronger and Provides Consistant Strength. |
| Arm Hinges | Pin/Collar with Grease Zerks | Long Life Expectancy, Easier Maintenance |
| Drop Pins | Replaces Load Shaft | Easy to repair/replace. Saves hours of labor |
| Cross Bar | 3" 1018 Cold Bar | Stronger and Higher Yield, Lasts longer |
| HYDRAULIC CYLINDERS | ||
| Arm Cylinder | 7 1/2" ID, 3 1/2" Chrome Shaft | All Welded Construction with drop pin connection |
| Contact Cylinder | 2 1/2" shaft w/ Snap Ring for Quick Repair | Can be fixed without removing cylinder from truck |
| Outriggers | Hydraulic Vertical (Fixed) | Fully Enclosed for Protection with Easy Access |
| LOADING & DUMPING OPERATION | ||
| Contact Cylinder | 2 1/2" shaft w/ Snap Ring for Quick Repair | Can be Fixed Without Removing Cylinder from Truck |
| Contact Cylinder Hose | Inside Lift Arm | Protects Hose from Premature Wear |
| Lift Hooks (Front) | 2-4 hole | Largest Versatilty of Containers Can Be Used |
| Dump Keys | Replaces "J" Hook | Safer and Significantly More Controlled Operation |
| Saddle Blocks | 3" x 8" Flame Cut | Allows Chain to Swivel for Level Operation |
| Chain | 1/2" High Alloy Chain | |
| U-Bolts | 1/2"x24" U-Bolt | |
| HYDRAULIC CYLINDERS | ||
| Hydraulic Flow Rate | 22 Gallons Per Minute | |
| Hydraulic LInes | Under Body with Access Panel | Easier to Replace and Simpler Routing |
| Hoses | 3000 PSI with Nylon Sleeves | Safety and Driver Protection is Paramount |
| Oil Tank | 50 Gallon, Truck Fame Mount | Out of Harms Way, Easy to Fill |
| Hydraulic Pump | P-51 Pump | 3000 PSI Operating Pressure |
| Valve | Commercial Valve | Rugged and Reliable Valve |
| In-Cab Controls | Air | Feathering Controls for Precise Operation |
| LIGHTING - ALL L.E.D | ||
| Side Marker, Rear Marker, Reverse, STT, 3- Bar Cluster, License Plate |
| FEATURES | STANDARD DETAILS |
| Dumping Methods | Original Heil used the center of body “Trip Hook” to empty the container contents. Today, Ace offers a re-engineered version of the original design. As well as offering contact cylinders in the arms to add versatility to the types of containers being used. |
| Uses | Waste Water Treatment, Concrete, Gypsum facilities, Scrap Material, Waste, Environmental, Construction and more! |
| Versatility | Varying sizes of trucks allow us to customize each unit for our customers individual application. Anywhere from a pick-up truck to a tandem axle Semi-Truck Chassis. |
