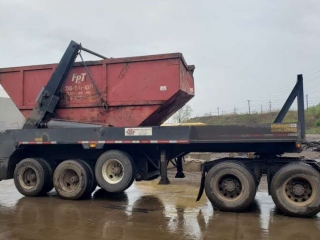

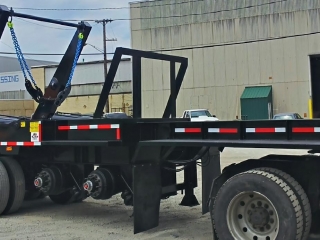

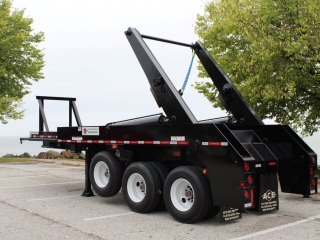

Ace Lugger Hoist Trailer

Put your current Lugger containers to greater use.  Brothers Equipment, Inc. presents the same robust Ace Lugger Hoist, now in a trailer form.  An Ace Lugger Hoist Trailer is perfect for maximizing legal payload while keeping the upfront expense to a minimum.  Ace customizes each trailer to your specific application.  Ask how this unit can benefit your company today!

REQUEST A QUOTE
  • Lightest Tare Weight of any Roll-Off Trailer

  • Best in Class Maneuverability

  • Dual Lift & Reeving Cylinders

  • CONTAINER SIZES: 5-60 CUBIC YARD

  • Wireless Remote Control (option)

  • Gross Vehicle Weight

Play Video
Download Brochure
FEDERAL BRIDGE LAW


Maneuverability

  • Total length of trailer when in “Up Position” is
    12’ from Rear axle of Tractor to center of tandem
    of the trailer.
  • Tractor-Trailer has a hinge, allowing the trailer to
    get into tighter areas.
  • Trailer has ability to get into areas a Roll-Off
    Truck cannot.

Cost and Savings Summary

Savings and Additional Potential Revenue Gain Over a Roll-off Truck (Straight Truck)

Cost & Savings of ART-60-25* ART-60-25* & Tractor
Payload Gain Per Haul 17,600 – 18,700 lbs.
Savings on ART-60-25* & New Tractor $47,050.00 +/-
Fuel Savings Per Tractor per Year $8,070.00 – 12,105.00 +/-
Fuel Savings Per Tractor Over 5 Years

$40,350.00 - 60,525.00 +/-

* Estimate


Product information

FEATURES STANDARD DETAILS
Axles Ace Lugger Hoist Trailers give you the option of having between a tandem axle and quad axle configuration.
Containers As with our Famous Ace Lugger Hoist Body, you have the ability to lift and dump 6-30 cubic yard containers but with an added bonus.  With an Ace Lugger Hoist Trailer, you will have opportunity to haul anywhere from 1 container to 4 containers. (Based on size of containers and trailer.)
Maximise Payload Only way to achieve 80,000 lbs. G.V.W with a lugger container. Ace gives you the ability to get the most out of your current lugger containers.



Tarping System
Aluminum Wheels
Air Ride Suspension
Lift/Drop Axle(s)
Auto-Grease System
Auto-Tire Inflate
In-Cab Controls
Removable Stops
Tool Box
Wireless Remote Control
Scale System
Inside/Outside Rail
Dead Lift
Hydraulic Cable Winch
And Many More!
